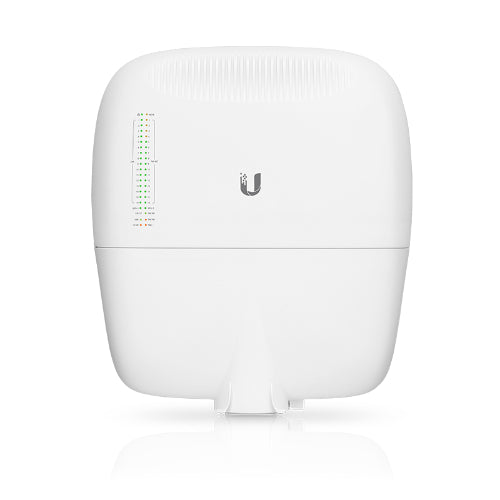

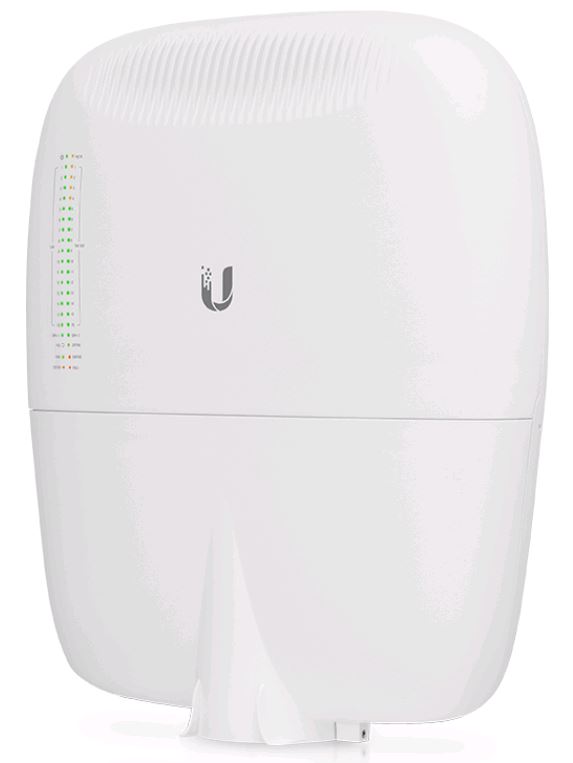

Ubiquiti EdgePoint S16
Ubiquiti EdgePoint S16
SKU:NHU-EP-S16
Price on request
Taxes included.
Shipping calculated at checkout.
Quantity
Optional paid support All services
- + Network health assessment From $590.00 incl. GST · 1 site · one-off labour Choose options
- + On-site technician visit From $149.00 incl. GST · first hour of simple setup · one-off labour Choose options
Choose the package and review its price and scope before requesting a booking. Included free remote support is separate.

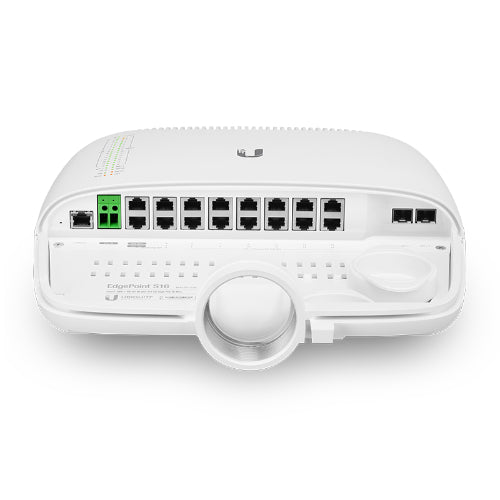

Application-specific WISP control point with (16) Gigabit RJ45 ports and (2) SFP ports
Key features
- Layer-2 switch with some layer-3 capabilities
- (16) GbE RJ45 ports
- (2) 1/10G SFP+ ports
- Weatherproof enclosure for outdoor use

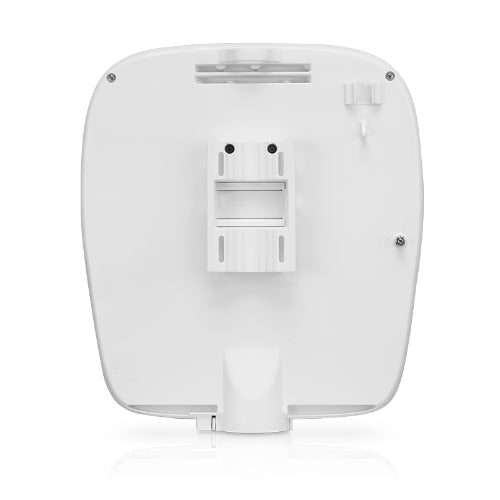

- Mount : Pole/wall mount
- Wind loading: 153 N at 200 km/h (34 lbf at 125 mph)
- Wind survivability: 200 km/h (125 mph)
- Power method
- (1) DC terminal block
- 54V DC, 6A input
- Self-correcting polarity protection on DC terminal block only, diode red protection on all power inputs.
- Power supply: Min. 54V / 0.8A (Excludes PoE output)
- Supported voltage range: 42–56V DC (-48V is NOT supported)
- Max. power consumption: 40W (Excludes PoE output)
- Ambient operating temperature: -40 to 65° C (-40 to 149° F)
- Ambient operating humidity:10 to 90% noncondensing
Model: EP-S16
Available only as part of a scoped service solution. Contact The Command Line with your site details, user count and goals for a tailored design and quote.
