Ubiquiti

Ubiquiti UniFi Access Door HubSingle Door Entry MechanismPoE Power

Ubiquiti UniFi Access Door HubSingle Door Entry MechanismPoE Power

SKU:NHU-UA-HUB

Price on request
Taxes included. Shipping calculated at checkout.

Optional paid support All services

Choose the package and review its price and scope before requesting a booking. Included free remote support is separate.

Ubiquiti UniFi Access Hub

Describation: The Access Hub is a single-door mechanism that provides complete entry and exit control via connected Access Readers.

Accessories: Click Here

Key features

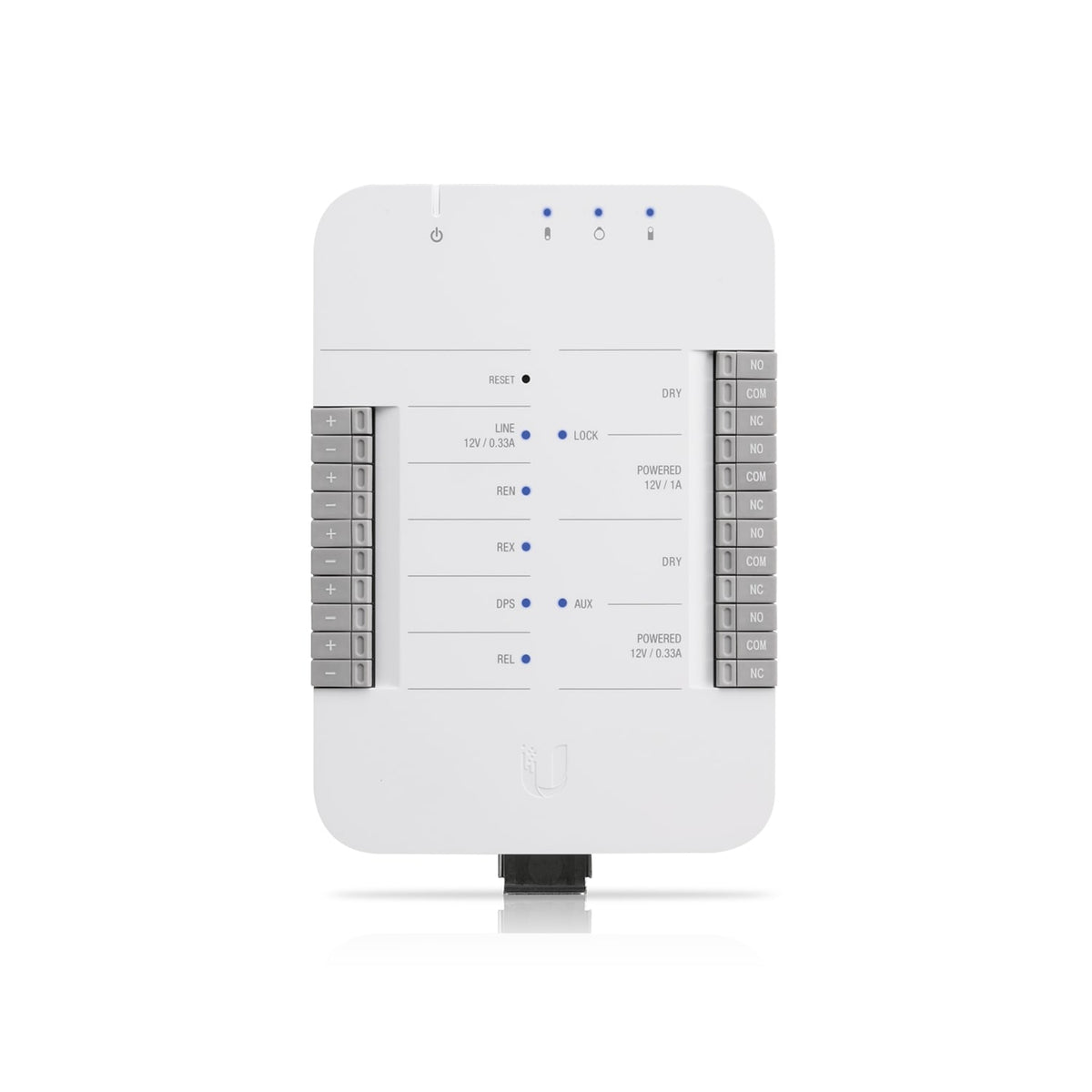

  • (2) Lock terminals (12V and Dry)
  • (2) AUX terminals for an external siren and automatic door opener
  • (4) Additional inputs (sensors and buttons)
  • Connect and power using PoE++
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
  • Connect to two UniFi Access readers and one UniFi Protect camera
  • Dimensions: 174.9 x 126 x 32.9 mm
  • Supported Doors: 1
  • Maximum User Count: 6,000
  • NDAA Compliant: Yes
  • Input Terminals
  • (2) Door exit request
  • (1) Door position
  • (1) Emergency

Model: UA-HUB-Door

Tech specs · Installation guide

Available only as part of a scoped service solution. Contact The Command Line with your site details, user count and goals for a tailored design and quote.

View full details
